Multi Color Curved Outdoor Fixed LED Display Panel P8 Low Power Consumption

Product Categories
Shenzhen LED World Co.,Ltd
Contact Now

Multi Color Curved Outdoor Fixed LED Display Panel P8 Low Power Consumption

  • 1
  • 2

Brand Name : Shenzhen LED World

Model Number : LW-FO 8

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 square meter

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5,000 square meters per month

Delivery Time : 10~20 days after receiving the deposit

Packaging Details : Carton/Plywood case etc.

Brightness : 5000nits

Module resolution : 32dot×16dot

Pixel density : 15625pixels/sq.m

Refresh frequency : ≥1920Hz

Grayscale/color : >16.7M

Gray level : 1024~65536

Temperature range : -15~60°C

Ingress protection : IP65

Driving method : 1/4scan

Cabinet weight : 40kg

Contact Now

Outdoor series fixed led display_201905211506521.p...P8 multi color outdoor curved led display panel with Low Power Consumption

P8 multi color outdoor curved led display panel features:

  1. High refresh rate ≥1920Hz;
  2. SMD3535 led encapsulation to confirm wide view angle and high brightness;
  3. Good waterproof IP65 suit to any weather rain sunny daytime night ;
  4. Cabinets adopt rapid assembling sets Which can be beautiful but also a real rapid disassembling;
  5. P8 full-color indoor LED video screens are of high contrast ratio at 4000:1 to show a clear and vivid image;
  6. Can be fixed on the wall on the street or for rental to meet the request of live broadcast live meeting banquet party etc to display the content what you want;

P8 multi color outdoor curved led display panel parameter:

Module Pixel pitch 8mm
Pixels SMD 3in1(3535)
Module size 256mm×128mm
Module resolution 32dot×16dot
Pixel density 15625pixels/sq.m
Cabinet Cabinet resolution 128×128dots
Cabinet dimensions 1024mm×1024mm×130mm
Cabinet material Iron
Cabinet weight 40kg
Electricity parameter Brightness 5000nits
Driving method Constant current
1/4scan
Refresh frequency ≥1920Hz
Gray level 1024~65536
Grayscale/color >16.7M
Frame frequency >60Hz
Viewing angle 120°
Power(maximum) 630W
Ingress protection IP65
Temperature range -15~60°C
Humidity range 10%~90%RH
Control system Synchronous control system Asynchronous control system
Input signal AV S-VIDEO VGA DVI HDMI YPBPR SDI DP
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

  1. Life time free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours;
  2. We offered training to our customer who includes operating and maintenance of our products;
  3. maintenance guidance and problem solution supplied in 48 hours.
  4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual, and control system software CD and so on;

Why choose us:

  1. Waterproof led module and cabinet; Easy maintenance installation; relative low power consumption; wide viewing angle;
  2. We mainly focus on achieving customers innovative ideas by customizing lead screens;
  3. We respond in 1 working day;
  4. We are expert in rental LED display, we have many ultra-thin super-light panel designs for your choice;
  5. Any your customized screen we can help you to design and put into product;
  6. Our LED display is energy efficient, low power and long life expectancy ;

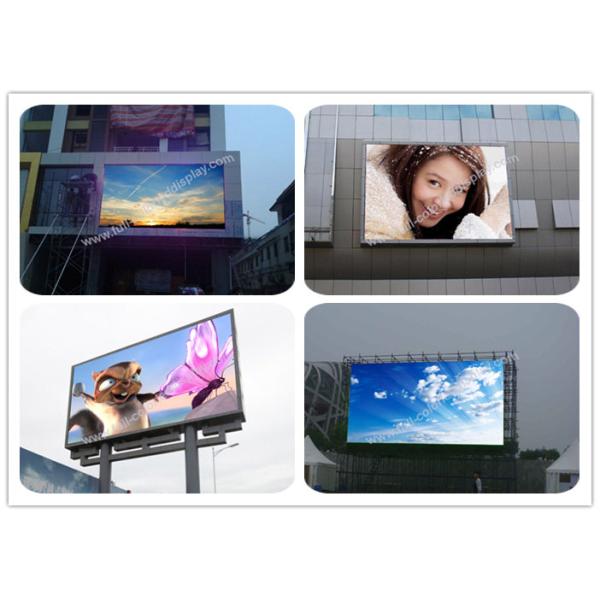

  7. P8 multi color outdoor curved led display panel project case:

Multi Color Curved Outdoor Fixed LED Display Panel P8 Low Power Consumption
