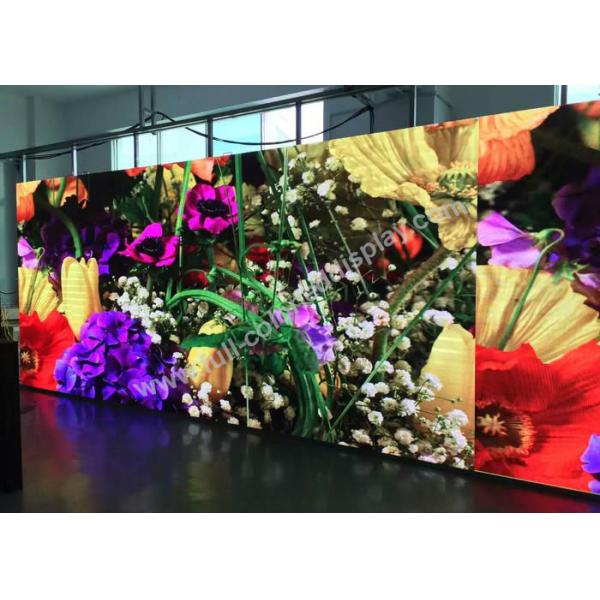

Seamless Splicing HD Full Color LED Display For Conference IP40 / IP21

Brand Name : Shenzhen LED World

Model Number : LW-RI 2.5

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000 Sqm/Month

Delivery Time : 12~18 days after receiving the deposit

Packaging Details : Carton/Plywood case/Flight case etc.

AC Input Voltage(V) : 100-240

Pixel Pitch (mm) : 2.5

Signal Transmission Distance (m) : CAT5 cable:<100 m; Single mode fiber:<10 km

Color Grayscale (Bit) : 14

AC Input Frequency(Hz) : 50/60

Waterproof Rating : IP40/IP21

Color Contrast : 2500:01:00

Refresh Rate(Hz) : 1920

Contact Now

P2.5 / P2 / P5 HD full color indoor rental led display screen for conference

features:

  • Seamless splicing,High gray scale, good performance;
  • Nanosecond response time.Stable and continue high-quality video for high-end applications;
  • High-Energy Saving
  • Save 66% energy;
  • High definition with an outstanding image and video quality;
  • Compatible with the traditional LCD TV/Monitor system of DVI signal interface;
  • Seamless connecting tech, high resolution,presenting the most real pictures;
  • Billion level color and high brightness quality black LED,realizing perfect of gray scale and contrast;
  • Refresh Frequency ≥2880Hz(Support High refresh rate, depend on the system configuration);
  • High pixel density, high definition, colorful, rich perspective, long life span and energy-saving etc；
  • High density,high definition,good uniformity；
  • Cabinet Size 480mm*480mm White balance Brightness 1200cd/㎡;
  • Fanless design;

Parameter:

Parameter Value
Physical Parameter Pixel Configuration 1515 black body 3in1 SMD
Pixel Pitch (mm) 2.5
Module Dimensions (LxW)/(mm) 160X160
Cabinet Dimensions (LxW)/(mm) 480X480
Panel material Diecasting Aluminum
Module Weight (kg) 0.4
Cabinet weight (kg) 11
Electronic Parameter Color Grayscale (Bit) 14
Color Grayscale (Bit) 16384
Refresh Rate(Hz) 1920
Scan Model 1/32
Frame Frequency(Hz) 50/60
Signal Transmission Distance (m) CAT5 cable:<100 m; Single mode fiber:<10 km
Optical Parameter Brightness(cd/m2) 1200
Color Temperature(K) 7500
Color Contrast 2500:01:00
Optimal Horizontal Viewing Angle(°) 160
Optimal Vertical Viewing Angle(°) 160
Electrical Parameter AC Input Voltage(V) 100-240
AC Input Frequency(Hz) 50/60
AC Input Power Maximum Value(W/m²) 570
AC Input Power Typical Value(W/m²) 190
Circumstance Parameter Storage Temperature(ºC) -40~+60
Operating Temperature(ºC) -10~+40
Storage Humidity(RH) 10~90
Operating Humidity(RH) 10~90
Waterproof Rating IP40/IP21
Lifetime Typical Value(hrs) 100000
Installation type for rental product Cabinet installation type Rental/Fix
Maximum number of panel for Lifting 20
Others Communication - level power supply (customization), hot double backup, temperature and humidity test, multi - signal input support, etc. Double backup, temperature and humidity test, multi - signal input support, etc.
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Application:

Our indoor ture color LED screen are widely used in shopping mall,big square,coffee shop,
Casinos,exhibition,bookstore,Concerts,exhibition hall,entertainment TV,Convenience Stores,
securities exchanging,mansion video wall and so on .

FQA:

  • What's the pixel pitch for Outdoor LED Display Screen?
  • Outdoor(p3.91mm/p4.81/p5mm/P6mm/p6.25/p6.67/ P8mm/P10mm/p16mm/p20mm) led display screen;
  • What is the payment method?
  • We support a variety of payment methods, the most common is the TT;
  • How can i place an order?
  • Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.For designing or further discussion, it is better to contact us with Skype/email /phone, incase of any delays;
  • How long can I get the goods?
  • Our produce time is about 10-25 working days.When you confirmed the order, we can start production
  • after receiving your deposit(30% TT in advance). we will update the production details in time.we will
  • notice you that we can delivery the goods to you after we get full payment;

Product aging:

Seamless Splicing HD Full Color LED Display For Conference IP40 / IP21

Package:

Seamless Splicing HD Full Color LED Display For Conference IP40 / IP21
