Brand Name : Shenzhen LED World
Model Number : LW-FO 16
Certification : CE,RoHS,FCC,CCC
Place of Origin : China
MOQ : 1 square meter
Price : negotiable
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 5,000 square meters per month
Delivery Time : 10~20 days after receiving the deposit
Packaging Details : Carton/Plywood case etc.
Operating Humidity : 10% - 90%
Viewing Distance : >16m
Module Size(mm) : 256x128
Configuration : DIP
Items : P16mm
Power : Max: 1000
LED Life : 100,000 hours
Consumption(W/㎡) : Ave: 200
P16 IP65 waterproof outdoor fixed led display high brightness Synchronous system.
Features:
Parameter:
| Items | P16mm |
| Pixel | 1R1G1B |
| Configuration | DIP |
| Pixel Pitch | 16mm |
| Pixel Density | 3,906 |
| Module Size(mm) | 256x128 |
| Pixels/Module | 16x8 |
| Cabinet Size(mm) | 1024x1024 ( Optional ) |
| Pixels/Cabinet | 64x64 |
| Cabinet Weight | 41KG |
| Brightness | >7000cd/㎡ |
| Viewing Distance | >16m |
| Power | Max: 1000 |
| Consumption(W/㎡) | Ave: 200 |
| Driver Mode | Static Latching |
| Viewing Angle | H: 120°; V: 120° |
| Cabinet Material | Cold Rolled Steel |
| Refresh Rate | 300-3000HZ adjustable |
| LED Life | 100,000 hours |
| Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| Operating Temperature | -20℃ ~ +50℃ |
| Operating Humidity | 10% - 90% |
| Gray Scale | Red, Green and Blue each 16K |
| Display Color | 4096 Billion |
| IP Rating | Front IP65 |
| Display Capability | Text, Graph and Video |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Why choose us:
FQA:
Product detail:


|
|

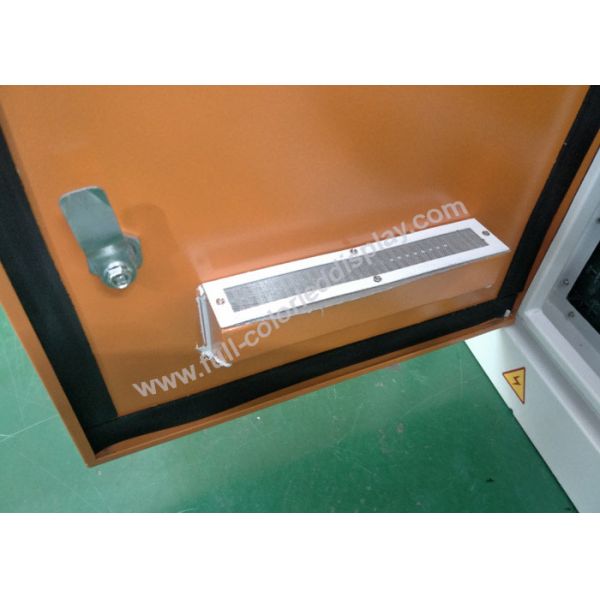

Outdoor Fixed LED Display / Waterproof Led Display P16 Synchronous System Images |
