Energy Saving Fixed Installation Led Display Small Viewing Distance

Brand Name : Shenzhen LED World

Model Number : LW-FO 5

Certification : CE,RoHS,FCC,CCC

Place of Origin : China

MOQ : 1 square meter

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5,000 square meters per month

Delivery Time : 10~20 days after receiving the deposit

Packaging Details : Carton/Plywood case etc.

Frame frequence : 50/60Hz

Gray scale : 65536

Pratical standard : CCC TUV-CE ETL etc.

Refresh frequence : >1800Hz

Working humidity : 10% ~ 90%

Driving method : 1/8 scan

Best viewing distance : 4-60M

Uniformity : 97%

Contact Now

energy saving P5 outdoor fixed led display high definition small viewing distance.

Features:

  • The screen is compatible with a variety of signal inputs, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc;
  • Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity and durability, suitable for rapid connection and high frequency use;
  • This display can show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats synchronously with PC;
  • Brilliant colors, breathtaking grayscales;
  • Power supply 220V/110V± 15% 50Hz；
  • High transparent , does not affect the lighting;
  • Fanless and IP65 waterproof design of cabinet greatly protect cabinet in any outdoor environment;
  • 14 bit color,16384 gray scale,showing very clear and vivid video and images;

Parameter:

P5 Outdoor full Color LED Screen Specification
Pixel pitch 5mm
Pixel Configuration 1R1G1B
LED component SMD2727 (nation star encapsulated)
Size of module 160mm x 160mm or 320x160mm
Resolution of module 32x32dots
Size of cabinet 800mm x 800mmx150mm/640mm x 640mm x 150mm
Resolution of cabinet 160 x 160/128x128dots
Material of Cabinet Steel Iron material( with back doors)
Weight of Cabinet 20KGS
Brightness >6000cd/sq.m
Density 40000dots/sq.m
Best viewing angle 140 /140
Best viewing distance 4-60M
Maximum power consumption <1200W/sq.m
Average power consumption <400W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Trade term:

  • Delivery time: 10-25 working days;
  • Package: Anti-shaking wooden package, Air flight case or Carton package;
  • Warranty time:2 years,lifelong maintaining；:

Our company:

Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
Our company leads the way in LED display manufacturing & technology.
usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.
top 3 among same-grade manufacturers in China.

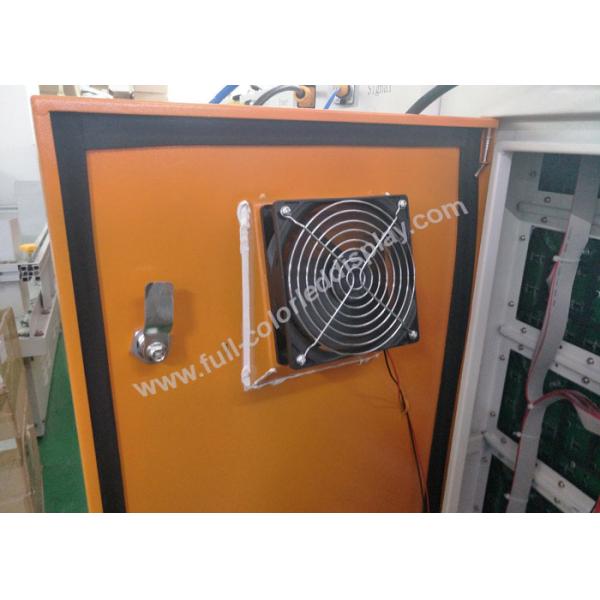

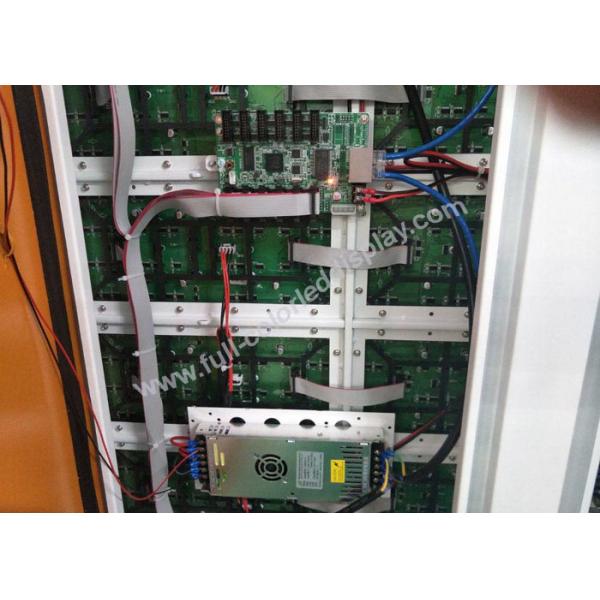

Product detail:

Energy Saving Fixed Installation Led Display Small Viewing Distance

Energy Saving Fixed Installation Led Display Small Viewing Distance
