Curved Seamless Corner Outdoor Led Video Display P6 1R1G1B With 2 Years Warranty

Product Categories

Shenzhen LED World Co.,Ltd

Contact Now

Name: Curved Seamless Corner Outdoor Led Video Display P6 1R1G1B With 2 Years Warranty
Brand: Shenzhen LED World
Price: 1 USD

Brand Name : Shenzhen LED World

Model Number : LW-FO6

Certification : CE, ROHS , CCC , FCC

Place of Origin : China

MOQ : 1 square meter

Price : Negotiation

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram,

Supply Ability : 5,000 square meters per month

Delivery Time : 7- 18 working days

Packaging Details : Carton/wooden case/Flight case etc.

Pixel pitch : 6mm

Pixel Density : 27777 pixels/sqm.

LED type : SMD2727

Pixel combination : 1R1G1B

Module size : 192x192mm

Module resolution : 32x32 pixels

Driving mode : 1/8 scan

IP Rating : IP65

Flatness : ≤0.1mm

Cabinet material : Die-cast aluminium or Iron

Contact Now

P6 Curved Outdoor Seamless Corner LED Angle Display With 2 Warranty

P6 Angle LED Display Feature :

Low Power Consumption, Energy Saving;
Compatible to many signal sources such as AV, S-Video, DVI, VGA,YPbPr, HDMI,SDI,DP etc;
Kinglight LED lamp and Sunmoon IC made;
Stable cabinet, stronger without distortion, anti-rust;
Natural Color(16,777,216 Colors) by the high-quality luminescent of RED, GREEN, BLUE- LED;
Large corner screen is easier to increase media audience attention;

P6 Angle LED Display Parameter :

P6 outdoor fixed LED display
Module Parameter
Pixel pitch	6mm
Pixel Density	27777 pixels/sqm.
LED type	SMD2727
Pixel combination	1R1G1B
Module size	192x192mm
Module resolution	32x32 pixels
Driving mode	1/8 scan
Panel Parameter
Number of modules	4W*4H
Panel size	768x768mm
Panel resolution	128x128
Maintain way	Rear
IP Rating	IP65
Flatness	≤0.1mm
Cabinet material	Die-cast aluminium or Iron
General Parameter
Viewing distance	≥7M
Brightness	≥5000CD/sqm.
Viewing angle	120°/120°
Weight	40kg/sqm.
Max Power consumption	Max. 700W/sqm.
Aver Power consumption	Aver. 280W/sqm.
Frame frequency	≥60HZ
Refresh frequency	≥1920HZ
Working Temperature	-30ºC~50ºC
Working Voltage	AC90~260V±20%,50-60HZ
Grey scale/color	16384x16384x16384
Brightness adjustment	0-255
MTBF	5000 hours
Life	100000 hours
Malfunction dot rate	<0.0001
Control distance	Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control system	Novastar / Linsn / Colorlight ( Optional )
Input signal	DVI / HDMI / SDI / VGA / S-video / Composite
Video processor	VDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio system	BOSE / JBL / PAL / Customized ( Optional )
Installation	Fixed installation / Rental installation ( Optional )
Hanging bar	Optional
Certification	CE / RoHS / ETL / CCC / FCC / BS476
Packing Type	Plywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

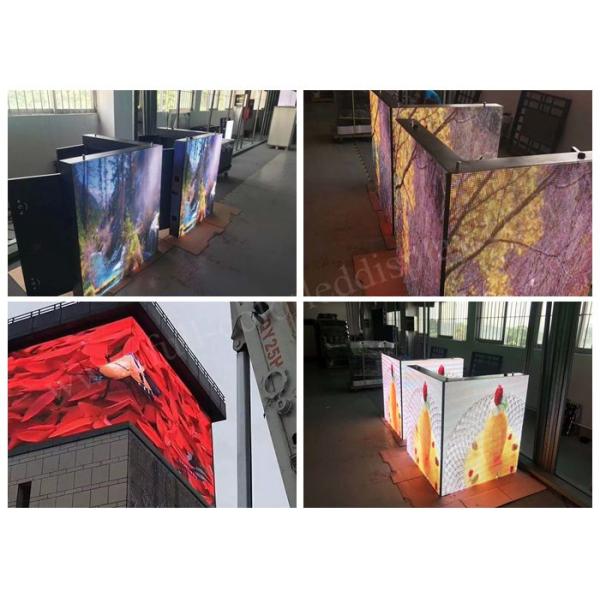

P6 Angle LED Display Details:

Curved Seamless Corner Outdoor Led Video Display P6 1R1G1B With 2 Years Warranty

Why Choose Us :

all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
Well-trained and experienced staffs to answer you’re your inquires in fluent English;
24H technology support no matter what questions you have;
We mainly focuses on achieving customers innovative ideas by customizing lead screens;
High contrast rate by using black body LED;
